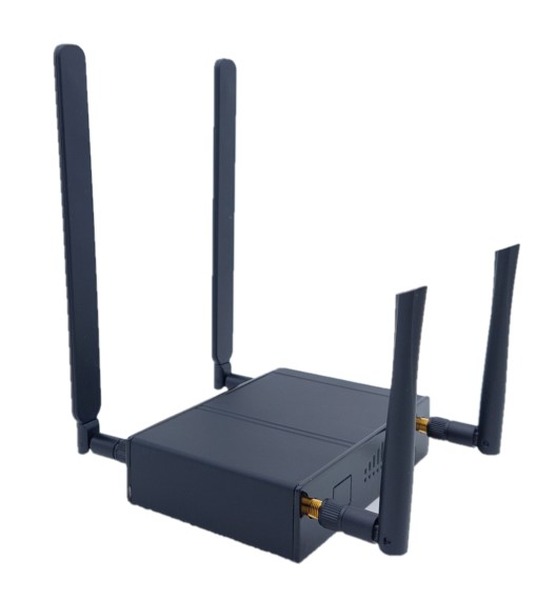

LTE 345 is a versatile and easy-to-use wireless router with 3GPP Rel 10.ollowing speed:
4G Bands B1, B2, B3, B4, B5, B7, B8,B12, B13,
         B14, B26, B19, B20, B28
3G-Band: B1, B2, B4, B5, B8, B19
2G: B2, B3, B5, B8

Cellular Speed:
LTE Cat.4: DL: max. 150 Mbps, UL:max.50.Mbps
HSPA+ : DL: max. 42 Mbps, UL: max. 5.76 Mbps
UMTS:384Kbps.

KEY FEATURES
WiFi(optional)
802.11b/g/n 2.4GHz，2T2R，up to 300 Mbps.

INTERFACES
• 2x 10/100Mbps LAN port，Auto MDI/MDIX
• 1 SIM card interface (3V/1.8V)
• Power supply 12VDC 5.5x2.1⌀
• External 2 SMA antenna interface for WiFi
 2T2R(optional)
 External 2 SMA antenna interface for LTE
 MIMO
• 1 TTL console port on board
• 1 485(optional) port to connect serial device. Can do remote control for serial device such as Solar panel, tracker….etc



Output power
Class 3 (0.2 W, 23 dBm) @ LTE

Button:
System Reset

LED
Power, 2.4GHz wifi status, 4G status, 2 10/100 LAN ports, Link/Act,WPS

Embedded system
• Linux:. Router can be shared by 250 user at the same time.
Supports OpenWRT, Ralink SDK

Protocol: TCP, FTP, PPTP, HTTP,HTTPS, TFTP, DHCP, NAT, IPSec Pass through, ICMP, IGMP, RIPv2, RIP, OSPF, SNMP, RMON, QoS.
Optional: VPN client or gateway, IPSec client.

Others
• Housing: Aluminum
• Size 12cm x 2.9cm x 7.8cm
• Weight 0.3 kg
• Operating temperatures
• Normal operating conditions -20...+70 °C

• lte345 catalog with le910c4wwx
