KEY FEATURES

• LoRaWAN Gateway.
• Open Source OpenWrt system.
• Support LoRaWan Station connection.
• LoRa Concentrator Engine: Semtech SX1302.
• LoRa High sensitivity: down to -140dBm Sensitivity @292bps.
• Support BLE 5.0, Wi-Fi 2.4G/5G IEEE 802.11b/g/n.
• Managed by Web GUI, SSH via LAN or WiFi.
• Support the POE Power supply.
• Support LTE Cat1/Cat M1(optional).
• Support GPS,GLONASS,Galileo,Beidou (optional).

Hardware
CPU:Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit
Memory:2GB  LPDDR4-3200 SDRAM
eMMC:8GB eMMC Flash memory
Port:1 × RJ45 (PoE PD supported)
Data Rate:10/100/1000 Mbps
Physical Layer:supporting IEEE 1588
Mode:Full or Half Duplex

LoRaWAN
Antenna:External Antenna
Channel:8 (Half)
Frequency Band:EU868
Sensitivity        :140dBm Sensitivity @292bps
Output Power:27dBm Max (Typical 26dBm)
Receive Channel:8 (Half/Full-duplex)
Send Channel:1
Protocol            V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C

Bluetooth/(Optional)
Antenna:External Antenna  (same as WIFI, 2 in 1)
Standard:Bluetooth 5.0, BLE Frequency Band:2.4G

WiFi(Optional)
WiFi:2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac wireless
Security:WPA/WPA2 authentication
Sensitivity        :140dBm Sensitivity @292bps
Output Power:27dBm Max (Typical 26dBm)

Cellular(Optional,can be replaced by different 4G )
Antenna:External Antenna
SIM Slot:Nano SIM card
LTE-FDD Band B1/ B3/ B5/B8
LTE-TDD Band B34/ B38/ B39/ B40/ B41 (140 MHz)

GNSS(optional)
Antenna:External Antenna
Supported GNSS:GPS、GLONASS、BDS 1PPS

Channel:32 tracking channels
Power
Power Consumption:Typical 2.6 W
Power input:12V 1.5A with PoE input(802.3 af)

Size
Ingress Protection:IP51

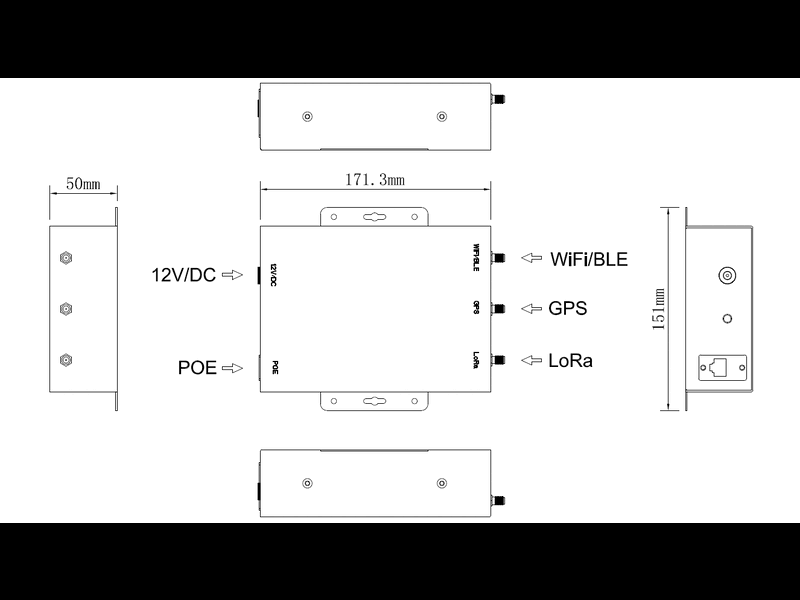

Dimensions:171.3 x 151 x 50 mm Weight 0.5 kg
Installation        Wall mounting, Pole mounting

System
OpenWRT with Network Protocol.TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, SSH,MQTT,..etc
Frequency Band:EU868
Sensitivity:-140dBm Sensitivity @292bps

Others
Operating Temperature -40°C to +75°C
Storage Temperature     -40°C to +85°C
