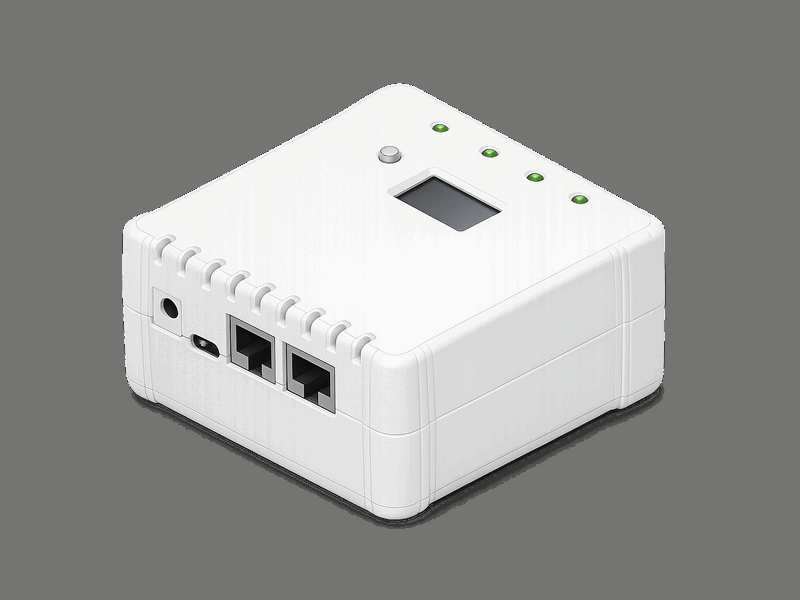

5G-B40-NAB, or-RWB is a versatile and easy-to-use wireless router with 5G , WiFi 7 & battery capability.
  5G NSA: up to 4.9 Gbps DL, 0.55 Gbps UL
  5G SA: up to 2.8 Gbps DL, 0.90 Gbps UL
  4G: 2 Gbps DL, 210 Mbps UL
  3G (HSPA+): 42 Mbps DL, 11 Mbps UL
  Up to 5.8Gbps from 802.11be/ax/ac/a/b/g/n 2T2R
  Up to 2.5Gbps from LAN.
  Up to 2.5Gbps from WAN.

KEY FEATURES
5G-B40-NAD(North America) 3GPP 5G Rel 17
5G NR: n2, n5, n7, n12, n13, n14, n25, n26,n28, n29, n30, n41 (n38), n48, n66, n70, n71, n77, n78
4G: B2, B4, B5, B7, B12, B13, B14, B17, B25, B26,
    B29, B30,B41 (B38), B42, B43, B48, B66, B71
5G-B40-RWD(Europe)
5G NR:n1, n3, n5, n7, n8, n20, n28, n40, n41
       (n38), n75, n76, n77, n78, n79
4G: B1, B3, B5,(B18, B19), B7, B8, B20, B28,
    B32, B40, B41 (B38), B42, B43
3G: B1, B5 (B6, B19), B8

GNSS(optional):Active antenna L1,L5
QZSS,GPS,GLONASS,Galileo,BeiDou

WiFi 7
802.11be/ax/ac/a/b/g/n 2T2R 2.4/5/6GHz DBS,HBS.
Dual band simultaneous (DBS) up to 2.4 GHz 2x2 40 MHz + 5 GHz 2x2 160 MHz /6 GHz 2x2 160 MHz
High-Band Simultaneous (HBS) with dual MAC, up to 5.8 Gbps data rate (2x2 5 GHz 160MHz + 2x2 6 GHz 160 MHz with 4K QAM modulation)

 WiFi:7 modulation
 802.11be: 4096QAM, 1024QAM, 256QAM, 64QAM, 16QAM , QPSK, BPSK embedded antenna 2T2R

WiFi Frequency
Wi-Fi:2.4~2.4835GHz,5.15~5.35GHz,5.47~5.85GHz,5.85GHz~5.925GHz, 5.93GHz~7.11GHz

INTERFACES
• 1x2.5Gbps WAN/LAN port.1x2.5G LAN
• Battery 7.4V, 7000mAH (51.8WH) Li-On, 18650 2S2P
• 2 SIM card interface (3V/1.8V)
• Power supply 12VDC,5A
• Internal 4 antenna interface for 5G, LTE.
• 1 nano SIM card tray with dual SIM, push-in, push-out.
• Type C USB3.0 for data communication & debugging.

Button: System Reset

LED: WiFi 2.4G、WiFi 5.8G、Cellular、Power.
OLED: Display Mode: Passive Matrix
• Display Color: Monochrome: White
• Number of Pixels: 128 x 64
• Active Area : 21.7 x 10.8 mm

Embedded system: Linux:OpenWRT.22.03
Protocol: TCP, FTP, PPTP, HTTP,HTTPS, TFTP, DHCP, NAT, IPSec Pass through, QoS.
Optional: VPN client or gateway, IPSec client.

Others -NAB(U.S.), -RWB(Europe)
• Size 9cm x 9cm x 6cm
• Weight 0.9 kg
• Normal operating conditions •-20℃ to +60℃


• 5g-b40nab battery catalog
